接收已解析的 JSON 消息
问题
您希望从 MQTT 代理接收已解析的 JSON 消息。
解决方案
使用 MQTT 输入 节点和 JSON 节点 来接收已解析的 JSON 消息。

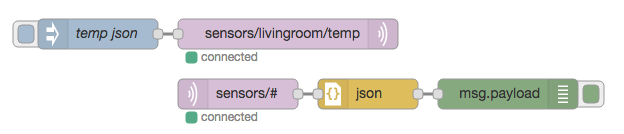

示例
[{"id":"8024cb4.98c5238","type":"mqtt in","z":"eda2a949.74ea98","name":"","topic":"sensors/#","qos":"2","broker":"61de5090.0f5d9","x":260,"y":580,"wires":[["b5098b7f.2361d8"]]},{"id":"15d727dd.33e808","type":"debug","z":"eda2a949.74ea98","name":"","active":true,"console":"false","complete":"false","x":530,"y":580,"wires":[]},{"id":"2aed678c.3de738","type":"mqtt out","z":"eda2a949.74ea98","name":"","topic":"sensors/livingroom/temp","qos":"","retain":"false","broker":"61de5090.0f5d9","x":310,"y":520,"wires":[]},{"id":"3b613a69.a247c6","type":"inject","z":"eda2a949.74ea98","name":"temp json","topic":"","payload":"{\"sensor_id\":1234,\"temperature\":13}","payloadType":"json","repeat":"","crontab":"","once":false,"x":120,"y":520,"wires":[["2aed678c.3de738"]]},{"id":"b5098b7f.2361d8","type":"json","z":"eda2a949.74ea98","name":"","pretty":false,"x":390,"y":580,"wires":[["15d727dd.33e808"]]},{"id":"61de5090.0f5d9","type":"mqtt-broker","z":"","broker":"localhost","port":"1883","clientid":"","usetls":false,"compatmode":true,"keepalive":"60","cleansession":true,"willTopic":"","willQos":"0","willPayload":"","birthTopic":"","birthQos":"0","birthPayload":""}]
讨论
除非被检测为二进制缓冲区，否则 MQTT 输入 节点的有效负载是字符串。要解析 JSON 字符串并将其转换为 JavaScript 对象，请使用 JSON 节点。
更新版本的 MQTT 节点（Node-RED 0.19 版及更高版本）现在有一个选择选项，可以选择所需的输出格式，因此可能不再需要 JSON 节点。
