生成 CSV 输出
问题
您希望从包含键/值对数据的消息中生成有效的 CSV 输出。
解决方案
CSV 节点可用于生成格式良好的 CSV 字符串。
示例
[{"id":"457d9ad6.b737b4","type":"inject","z":"64133d39.bb0394","name":"single","topic":"","payload":"","payloadType":"date","repeat":"","crontab":"","once":false,"onceDelay":0.1,"x":90,"y":640,"wires":[["1e05fafd.887b05"]]},{"id":"1e05fafd.887b05","type":"change","z":"64133d39.bb0394","name":"Generate single payload","rules":[{"t":"set","p":"payload","pt":"msg","to":"{ \"a\":$floor(100*$random()),\"b\":$floor(100*$random()),\"c\":$floor(100*$random())}","tot":"jsonata"}],"action":"","property":"","from":"","to":"","reg":false,"x":270,"y":640,"wires":[["e9546682.b39898"]]},{"id":"e9546682.b39898","type":"csv","z":"64133d39.bb0394","name":"","sep":",","hdrin":"","hdrout":false,"multi":"one","ret":"\\n","temp":"a,b,c","skip":"0","x":450,"y":640,"wires":[["f83ad3b0.78d32"]]},{"id":"f83ad3b0.78d32","type":"debug","z":"64133d39.bb0394","name":"","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"false","x":590,"y":640,"wires":[]},{"id":"ae242f2c.d1c8a","type":"inject","z":"64133d39.bb0394","name":"array","topic":"","payload":"","payloadType":"date","repeat":"","crontab":"","once":false,"onceDelay":0.1,"x":90,"y":700,"wires":[["7535f521.4a88bc"]]},{"id":"7535f521.4a88bc","type":"change","z":"64133d39.bb0394","name":"Generate array payload","rules":[{"t":"set","p":"payload","pt":"msg","to":"[\t { \"a\":$floor(100*$random()),\"b\":$floor(100*$random()),\"c\":$floor(100*$random())},\t { \"a\":$floor(100*$random()),\"b\":$floor(100*$random()),\"c\":$floor(100*$random())},\t { \"a\":$floor(100*$random()),\"b\":$floor(100*$random()),\"c\":$floor(100*$random())},\t { \"a\":$floor(100*$random()),\"b\":$floor(100*$random()),\"c\":$floor(100*$random())}\t]","tot":"jsonata"}],"action":"","property":"","from":"","to":"","reg":false,"x":270,"y":700,"wires":[["f4e0465f.ef0338"]]},{"id":"f4e0465f.ef0338","type":"csv","z":"64133d39.bb0394","name":"","sep":",","hdrin":"","hdrout":true,"multi":"one","ret":"\\n","temp":"a,b,c","skip":"0","x":450,"y":700,"wires":[["6eb67fdf.58626"]]},{"id":"6eb67fdf.58626","type":"debug","z":"64133d39.bb0394","name":"","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"false","x":590,"y":700,"wires":[]}]
讨论

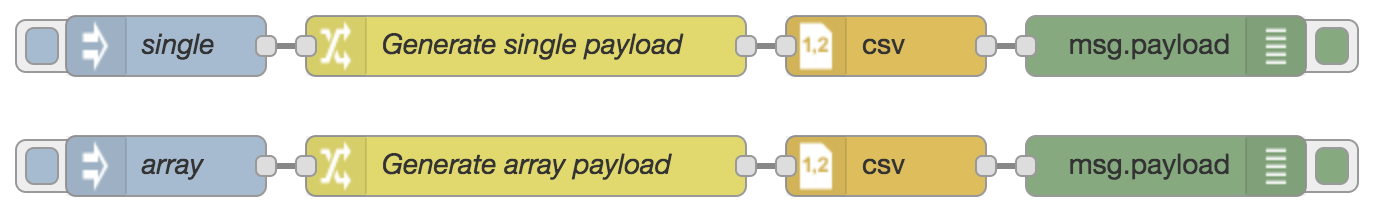

在此示例中，第一个流注入的有效负载包含一个具有三个属性的单个对象，这些属性包含随机生成的值。
{
a: 10,
b: 20,
c: 30
}
CSV 已配置所需的列名，并使用相应的对象属性来填充这些列。
生成的消息包含该单行数据的格式良好的 CSV 字符串，包括末尾的换行符。
"10,20,30\n"
这适用于传递给 File Out 节点以附加到现有 CSV 文件。
第二个流注入包含随机生成值的对象数组
[
{ a: 80, b: 18, c: 2},
{ a: 52, b: 36, c: 10},
{ a: 91, b: 18, c: 61},
{ a: 32, b: 47, c: 65},
]
同样，CSV 节点已配置要使用的列名。它还已配置为将列名作为输出的第一行。
a,b,c
80,18,2
52,36,10
91,18,61
32,47,65
